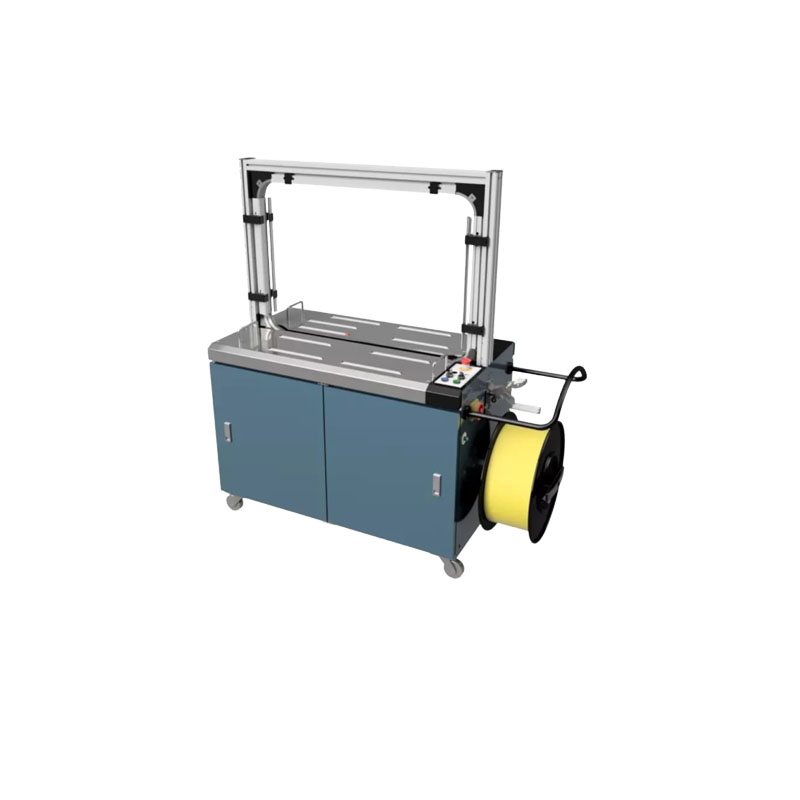

Fully Automatic Strapping Machine :
We Supplies Fully Automatic Strapping, Taping, Palletising line as per Customers Requirement
| Model | PW-0860C |
PW-0860AS2R (Top Roller Driven) |
| Power supply | 3 Phase, 220 / 380 / 440v, 50 / 60hz |
|
| Strap width | 9, 12, 15, 19mm |
|
| Tension adjustment | Adjustable (Max. over 90kg.) |
|
| Speed | 2.4sec. / per cycle |
|
| Max. package size | W850 x H600 mm |
|
| Power consumption | 850w |
1250w |
| Min. package size (LxWxH) | W100 x H50 (mm) |
500 x 400 x 50 (mm) |
| Dimension (LxWxH) | 1440 x 640 x 1517 (mm) |
1645 x 760 x 1535 (mm) |
| Net weight | 250 kgs. |
330 kgs. |
| Gross Weight | 300 kgs. |
390 kgs. |
| Shipping Size | 1480 x 700 x 1700 (mm) |
1660 x 850 x 1700 (mm) |
Features :
PW-0860C |
PW-0860AS2R (Top Roller Driven) |
|
|
